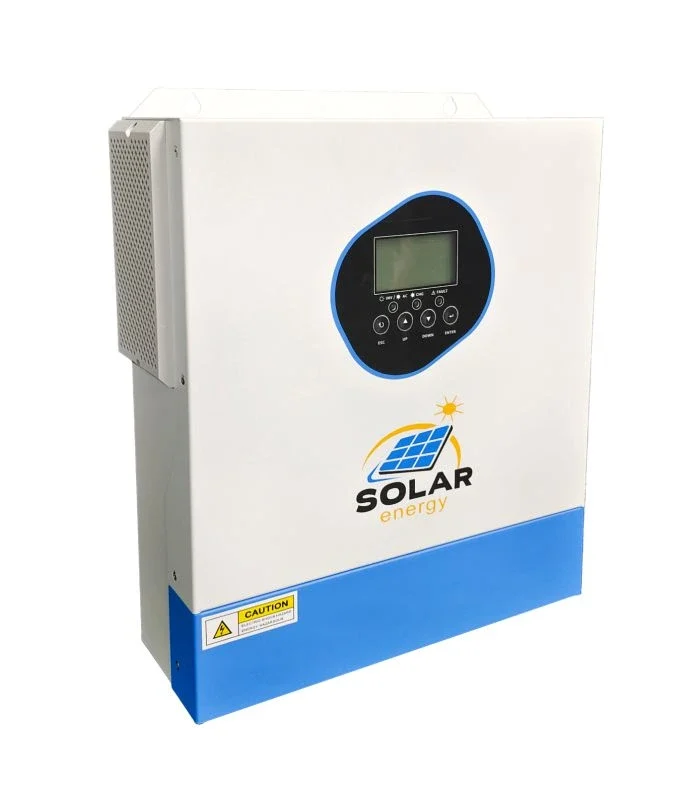

TE3500-24L MPPT SOLAR INVERTER 3.5KW data sheetProduct Features
- Pure sine wave
- Power factor 1.0
- Built-in MPPT 60A
- PV input Voltage 30Vdc~160Vdc
- Detachable dust cover for harsh environment
- WiFi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU
Technical Data
|
MODEL |
TE3500-24L |
|
CAPACITY |
3.5KVA/3.5KW |
|
Parallel Capability |
NO |
|
INPUT |
|
|
Nominal Voltage |
230VAC |
|
Acceptable Voltage Range |
170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
|
Frequency |
50/60 Hz(Auto sensing) |
|
OUTPUT |
|
|
Nominal Voltage |
220/230VAC±5% |
|
Surge Power |
7000VA |
|
Frequency |
50/60Hz |
|
Waveform |
Pure Sine wave |
|
Transfer Time |
10ms(For personal Computer);20ms(For Home Appliances) |
|
Peak Efficiency(PV to INV) |
96% |
|
Peak Efficiency(Battery to INV) |
93% |
|
Overload Protection |
5s@>=140% load; 10s@100%~140% load |
|
Crest Factor |
3:1 |
|
Admissible Power FACTOR |
0.6~1(inductive or capacitive) |
|
BATTERY |
|
|
Battery Voltage |
24VDC |
|
Floating Charge Voltage |
27.0VDC |
|
OverCharge Protection |
28.2VDC |
|
Charging Method |
CC / CV |
|
Lithium Battery Activation |
YES |
|
Lithium Battery Communication |
YES(RS485) |
|
SOLAR CHARGER & AC CHARGER |
|
|
Solar Charger TYPE |
MPPT |
|
Max.PV Array Power |
1500W |
|
Max.PV Array Open Circuit Voltage |
160VDC |
|
PV Array MPPT Voltage Range |
30VDC~160VDC |
|
Max.Solar Input Current |
50A |
|
Max.Solar Charge Current |
60A |
|
Max.AC Charge Current |
80A |
|
Max.Charge Current(PV+AC) |
120A |
|
PHYSICAL |
|
|
Dimensions,D x W x H(mm) |
358x295x100 |
|
Package Dimensions,D x W x H(mm) |
465x380x175 |
|
Net Weight(Kg) |
7 |
|
Communication Interface |
RS232/RS485 |
|
ENVIRONMENT |
|
|
Operating Temperature Range |
(-10°C to 50°C) |
|
Storage temperature |
(-15°C ~ 50°C) |
|
Humidity |
5% to 95% Relative Humidity ( Non-condensing ) |
