Whole House System (Bracket)

Description

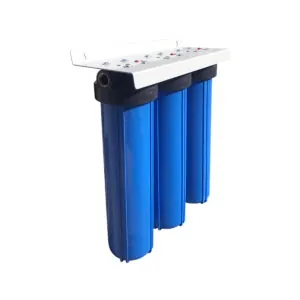

Triple Stage Whole House Water Filtration System

The Whole House Water Filtration System is designed with a three-stage water filtration system that consists of Polypropylene Sediment Removal filters and A Activated Carbon Block filter.

First & Third Stage Filtration (Polypropylene Sediment removal Filters)

This sediment filter is for domestic water filtration purposes. It is designed to filter out sediments such as rust, mud, and dust particles from the municipality and rainwater.

The polypropylene sediment removal filter cartridge is constructed by three layers of heat-melting polypropylene. Compared to monolayer, the application life of PP melt blown filter cartridge with three layers is much longer. Therefore, the maintenance of the filters can be cut down a lot Using the right heating method for PP fiber, it can reduce the filtering resistance a lot and enlarge the water flow much The uniform space of fiber can achieve an excellent filtering effect As the filter cartridge is only made from polypropylene, the resistance to chemical reagents for both the organic solvent and the inorganic solvent is all good.

FUNCTION:

• The function of the polypropylene sediment removal filter cartridge filter is to separate substances or particles from the liquid. The cartridge filter is a medium to filtrate substance that flow with liquid. cartridge filter in this project focuses on a water filtration system that is usually used at houses and small-scale industries. The volume flow rate relates to the pressure of the water that flows through the pipe system. Cartridge filter function as a media that reduce pressure from the water flow and call pressure drop. Sediment sand particles function as particles that flow with the water and will filtrate with a cartridge filter. Sediment sand makes contact on the surface of the cartridge filter depending on the volume flow rate of water. The cartridge will be clogged because of sediment sand clogging on the surface of the cartridge filter when trying to enter the cartridge filter. This situation makes the filtration system have different pressure on the entrance and the exit of the cartridge housing. Different pressure call pressure drop represents the pressure drop of the cartridge. The pressure drop can relate to the volume flow rate and determining the life span and maximum condition of the cartridge filter. The maximum clogging condition happens because the pressure of the cartridge filter does not increase anymore and the cartridge filter has fully clogged with sediment sand.

For More Information On the Polypropylene Sediment Filter, Click Here

Second Stage Filtration (Activated Carbon Block Filter)

CTO Carbon block filters are made from activated carbon and its specific function is the chemical adsorption of impurities and contaminants in drinking water.

Activated carbon block filter is an ideal medium for treating contaminants in water, offering a large surface area for the adsorption of dissolved matter. Building upon this, the solid carbon block enhances the medium by preventing channeling, increasing surface contact time, and enabling custom pore formulation for mechanical filtration. Carbon Blocks are one of the most effective and widely used technologies in the Point Of Use (POU) drinking water treatment industry.

Function Of An Activated Carbon Block Filter Cartridge:

Carbon block filters are made from activated carbon. Its function is to adsorb chemical impurities and contaminants in drinking water. Carbon filters are widely used to remove chlorine, taste, odor, and color.

For More Information One The Activated Carbon Block Filter, Click Here
