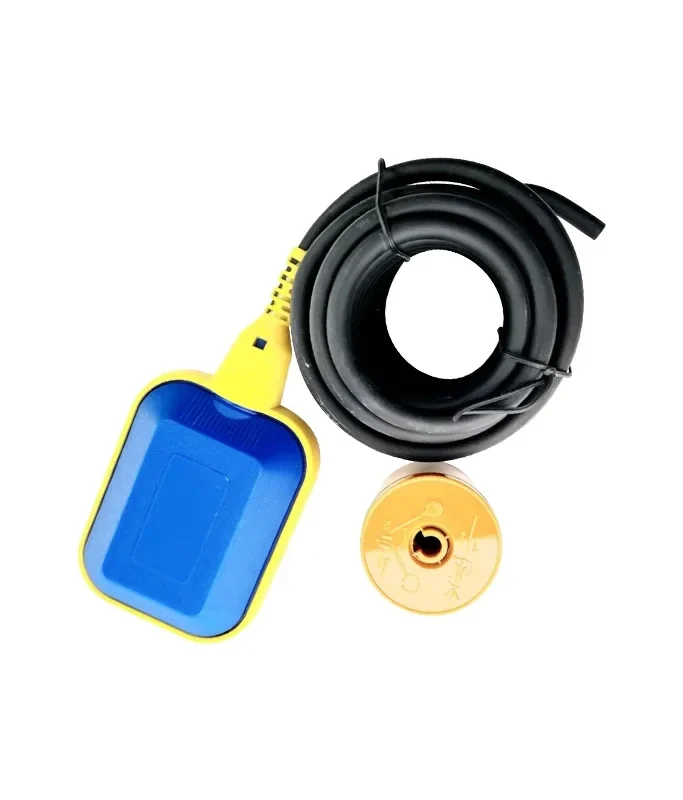

Puritech Paddle Float Switch – Industrial RO System Water Level Control
The Puritech Paddle Float Switch is a mechanical level-sensing device designed for automatic control of water levels in industrial applications. It is particularly compatible with industrial RO systems, enabling automatic start and stop of the RO unit: when the pure water tank is full, the float switch stops the RO system; when the water level drops, it automatically restarts the RO system to refill the tank.
Key Features & Benefits
- Automatic RO Control: Seamlessly regulates industrial RO systems, preventing overflow and dry running.
- Dual-Action Operation: Functions as both normally open (NO) and normally closed (NC), providing versatile control.
- Durable Construction: Built to withstand harsh water conditions, ensuring reliable long-term operation.
- Easy Installation: Simple setup reduces installation time and labor costs.
- Adjustable Sensitivity: Counterweight allows precise control over water level activation points.
- High Voltage Capacity & Protection: Supports up to 250V and has an IP68 rating for dust and submersion protection.
Technical Specifications
- Cable Length: 5 meters
- Maximum Voltage: 250V
- Maximum Current: 16A (8A for continuous operation)
- Maximum Power: Up to 1.1kW pumps; for larger pumps, wiring via a contactor is recommended
- Operating Temperature: Up to 55°C
- Protection Grade: IP68
Applications
The Puritech Paddle Float Switch is ideal for:
- Industrial RO Systems: Automatically controls the RO operation based on tank water level.
- Water Tanks: Prevents overflow and ensures a consistent water supply.
- Sump & Sewage Pumps: Automatically start and stop pumps based on water level.
- General Industrial Use: Suitable for any system requiring reliable water level monitoring and control.
Installation Notes
- Orientation: Install vertically for accurate sensing.
- Cable Management: Secure the cable to prevent damage.
- Testing: After installation, test the switch and adjust the counterweight for the desired activation points.
