Description

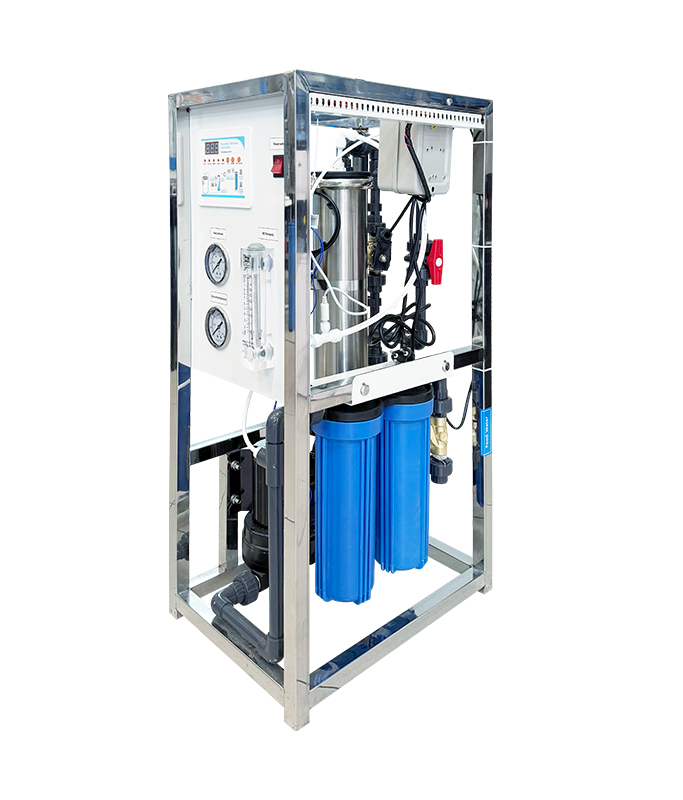

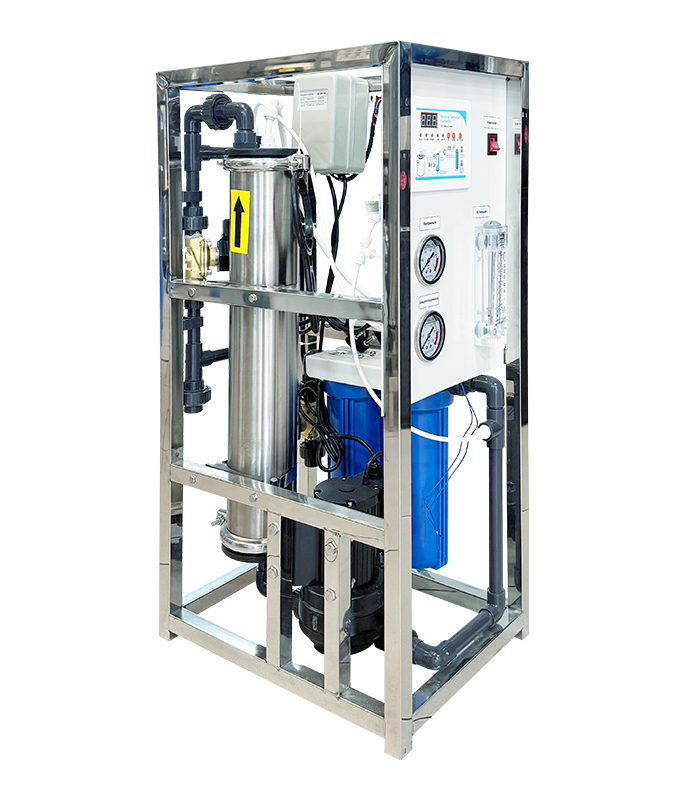

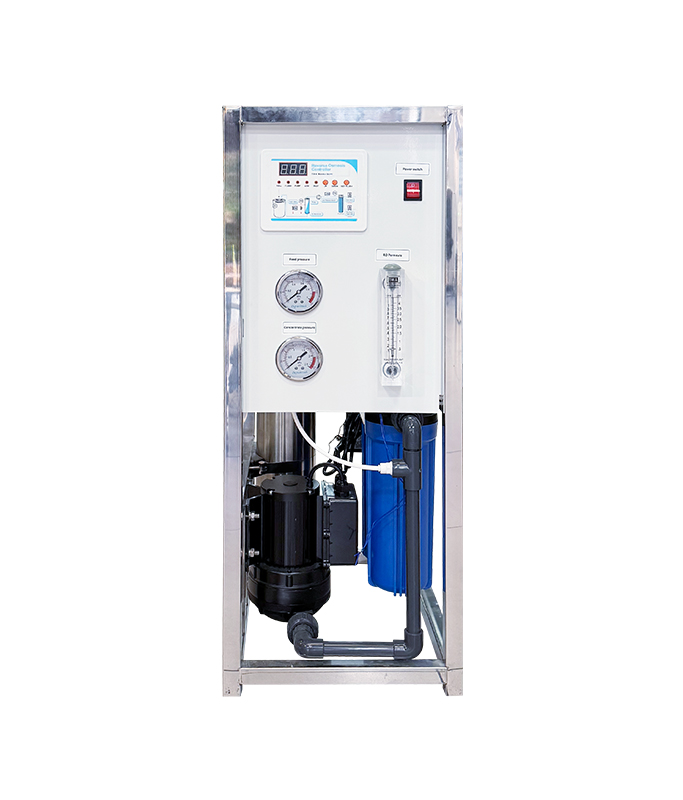

1000 GPD Reverse Osmosis System

Puritech 1000 GPD Reverse Osmosis System is part of a family of reverse osmosis units specifically designed for operation with fresh and brackish feed waters having TDS values below 1,500ppm. Customers can access these Models with permeate output of 150 liters/hr as shown in the specifications.

The reverse osmosis systems have been widely used for commercial purposes such as treatment of wastewater, desalination, minerals reclamation, and purification of water. If you have been searching for the best and most efficient Industrial RO system, then you have landed at the right place. At Puritech, we provide the best quality RO water units that can meet your needs, expectations, and budget.

We provide the highest standard and compact commercial reverse osmosis system at an affordable pricing range. All our RO systems are highly durable and we guarantee that they can be last for many years with proper care and maintenance.

Benefits

• Specialized Micro-Computer Controller
• Fully Equipped and Customizable
• Low Energy Consumption
• High Flow Low-Energy Membrane
• Low Maintenance
• Compact Space Saving Design

Standard Features

• RO micro-computer controller with permeate TDS readout
• 300PSI stainless steel membrane housing+PE end caps
• 5-micron sediment pre-filter x 2
• Puritech rotameter for permeate and concentrate stream
• Puritech pressure gauges for prefilter feed and
• RO feed High-pressure switch
• Electro-plated SS304 skid frame

Technical Specifications

E-CHEN EC-AIBLDC-HDC Series

The E-CHEN EC-AIBLDC-HDC is a high-efficiency brushless DC (BLDC) booster pump designed for use in water treatment and filtration systems, particularly reverse osmosis setups. It features an integrated electronic control system that maintains stable performance while protecting the unit from issues like over-voltage, over-current, and motor blockage. Thanks to its brushless design, it offers quieter operation, reduced wear, and a longer service life compared to traditional pumps. Typically operating on standard AC power, it delivers consistent water pressure and flow, making it well suited for applications that require reliable and continuous water supply, such as purification systems, laboratory equipment, and specialized fluid handling setups.

Features

• Variable frequency motor
• Steady RPM
• Integrated PCB driver
• Over Voltage Protection
• Over Current Protection
• Locked Rotor Protection

Specifications

• Voltage：220-240VAC
• Port：1/2″ NPT
• Inlet Pressure：30 psi
• Working Pressure：100 psi
• Flow at Working Pressure：≧ 8 LPM
• Current at Working Pressure： ≦ 1.2 A
• Max Current：≦ 1.5 A
• Max Pressure：160±15psi
• Weight：1.95kg
• Dimensions：225x128x173mm

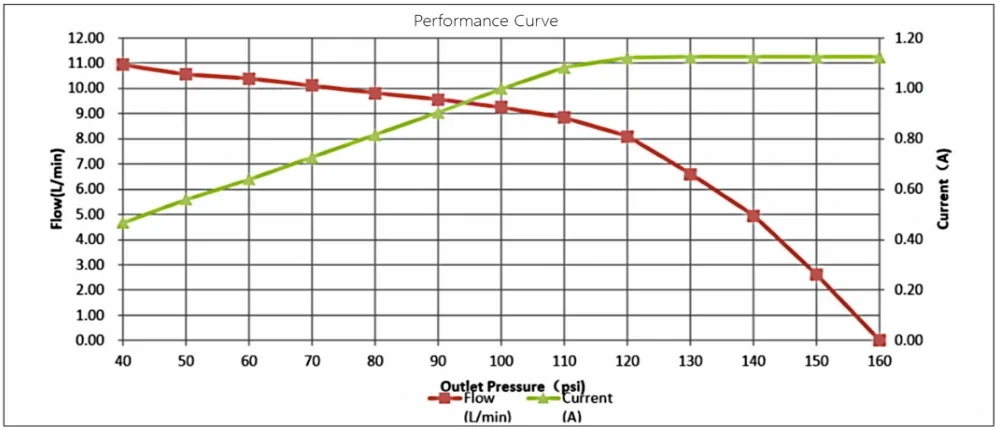

Performance Curve Chart

Features

• High Energy Efficiency
• Long Lifetime
• Self-Protection
• Low Noise
• Speed Control
• No Sparks and Carbon Dusts
• Microprocessor (small PCB)
• Patented Product

Materials

• Nylon Housing
• EPDM Valves
• Santoprene Diaphragm
• 304 Stainless Steel Fasteners

Applications

• Pre-Filter Water Treatment
• Reverse Osmosis
• Medical Labwater
• Misting Systems
• Carbonation Systems
• Alternative Energy/Solar

Vontron ULP21-4041 Reverse Osmosis Membrane

1000 GPD Reverse Osmosis System also uses vontron ULP21-4021 ultra low-pressure membrane delivers high permeate flows and salt rejection at lower raw water pressures, compared to regular low-pressure membrane elements. The high salt rejection and low working pressure result in up to 30% lower energy consumption compared to standard elements.

Vontron ULP 4021 series of low-pressure membrane elements are based on a 10.3 bar (150 PSI) test pressure.

Product Specifications:

• Salt Rejection: 99%*
• Permeate Flow: 1000 gpd (1.5 m³/day on a 10 hr cycle) *
• Membrane Area: 36 ft 2.
• Diameter / Length: 4 inches / 21 inches.
  *Test conditions: 1500 mg/l NaCl, 10.3 bar (150 psi), 25°C (77°F), pH 7.5, recovery rate 8%.
  *Pre-treatment must be used to protect the membrane (softener, antiscalant dosing pump, sand filter, carbon filter, 5-mic cartridge filter, etc.).

The Vontron ULP 4021 membrane is suitable for water purification applications of water sources with salt concentrations lower than 2000 ppm, such as surface water, underground water, tap water, and municipal water.

Commercial Application of 1000GPD RO System:

• Drinking water.
• Softened water for homes, hotels, commercial laundries, and car wash.
• Spot free rinse, used for window cleaning and solar panel cleaning
• Pure water for pharmaceuticals, laboratories, Hemodialysis, and electronics
• Sterilisers and autoclaves.
• Chemical industry.
• Aquarium water treatment.
• Boiler and cooling towers make up water.
• Pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production.

Operation Conditions:

• Max. working pressure: 150 psi
• Max. Temperature of Feedwater: 45˚C
• Max. Feedwater SDI15: 5.
• Max. Feed Water Total Hardness: 10 ppm (softener or antiscalant should be used).
• pH Range of Feedwater during Continuous Operation: 310
• pH Range of Feed Water during Chemical Cleaning: 212
• Residual chlorine Concentration of feed water 0.1ppm Max.
• Pressure drop of single membrane element: 15psi (0.1MPa)

Pressure Switch

1000 GPD RO System uses the Pressure Switch for regulating, monitoring pressure gauges and this pressure wsitch has a wide range of industrial applications.

Features

• Ultra-short bounce time
• Compact dimensions
• Shock and impact resistant

4021 Stainless Steel Membrane Housing

4-inch x 21-inch Membrane Housing is used to hold 4.0-inch x 21-inch Membranes for RO, NF, UF, and MF.

Low Price, Durable, Easy to Install, and DIY Reverse Osmosis Membrane Housing.
