Product information
Details & specifications

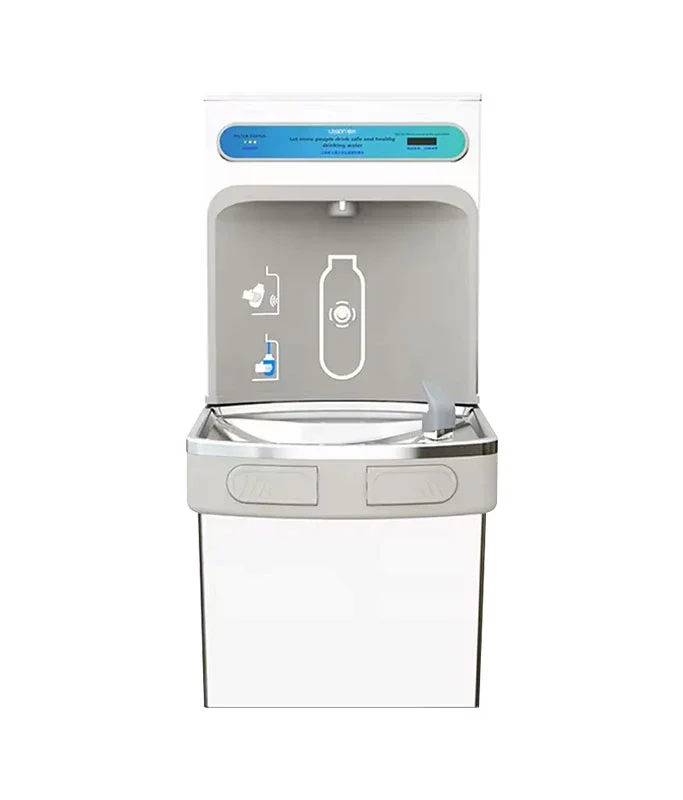

- Complete cooler and bottle filling station in a consolidated space saving ADA compliant design;
- Bottle Filler features sanitary no-touchsensor activation, hands free operated;
- Built-in Filter and UV, visual filter monitor;
- Quick Fill Rate with automatic 120-second shut-off timer
- Water ways Are Lead-Free In Materials & Construction
- Stainless Steel Faucet Top One Piece, Large Flow, Flexible Bubbler Guard
- Heavy Duty Stainless Steel Frame
- High Efficiency Cooling Ice Tank and Coil
- Refrigerant R-134a or R290
- Four Push Pad Manual Activation on water cooler
- External Stream Height Adjustment on cooler
- Feed water pressure: 0.1-0.35 Mpa
- Operating pressure: 0.4-0.6 Mpa
- Ratedvoltage:110V/220V50/60Hz
- Rated power consumption: 220w
- Suitable feed water: residential tap water
- Suitable ambient temperature: 5 to 38˚C
- Suitable feed water TDS: 500ppm (maximum 2000ppm)
- Wall mounted installation
| Installation | On-wall | Type: Wall Mounted |
| Filters | 1st stage | 10” PP+CTO composite filter |
| 2nd stage | UV (Optional) | |
| Housing | Upper Cover | SS304, 1.0 mm Thickness, Rim Folded Inside |
| Outside Housing | SS304, 0.8 mm Thickness | |
| Inner Tank | SS304, 1.2 mm Thickness | |
| Color | Silver-gray/black titanium | |
| Tank capacity | Ice Tank | 3L |
| Output | Cold Water | 30 L/hr at 6-8°C |
| Normal Water | 200 L/hr | |
| Packing | Dimension | 470*480*999mm |
| Gross weight/net weight | 38kgs/40kgs | |
| Remark Bottle Filling Station delivers a clean, quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. | ||
