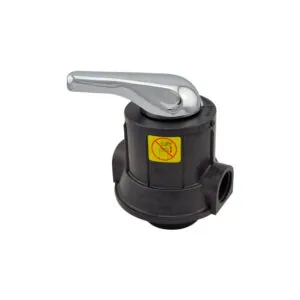

RUNXIN F56A1 Manual Filter Valve
The RUNXIN F56A1 Manual Filter Valve is designed for filtration systems where user‐control of backwash and rinse cycles is preferred. With a flow capacity up to 4 m³ per hour (≈4000 L/h), it suits filter vessels of 6″–12″ diameter. It features manual operation through a handwheel, enabling you to switch between Service → Backwash → Fast Rinse → Service without electrical controls. This makes the valve sturdy and easy to maintain.
Key Features
- High Flow Capacity: Supports up to 4 m³/h flow rate, ideal for moderate commercial filters.
- Manual Control: The handwheel lets you choose the filter mode manually—no automatic electronics required.
- Durable Design: Built with hermetic head faces and corrosion‑resistant materials for reliable service.
- Versatile Application: Works with sand, activated carbon, iron‑removal resin, and other media.
- Simple Installation: Suitable for 1″F inlet/outlet, 2.5″‐8NPSM base, and offers flow rates for 6″‑12″ tanks.
Technical Specifications
| Parameter | Value |
|---|---|
| Inlet/Outlet | 1″ Female threads |
| Max Flow Rate | ~4 m³/h (≈4000 L/h) |
| Tank Size | 6″-12″ diameter (for typical use) |
| Operating Pressure | 0.15-0.6 MPa (≈1.5-6 bar) |
| Operating Temp | 5 °C – 50 °C |
| Media Compatibility | Sand, activated carbon |
Why Choose the RUNXIN F56A1 Manual Filter Valve?
If you run a mid‐sized water filtration system and prefer full control, this valve offers a cost‐effective solution. Because it uses manual control, you avoid electronic complexity. Moreover, its high flow capability ensures your system won’t become a bottleneck. Also, the durable build gives you peace of mind with fewer service calls and less downtime.
Installation & Maintenance Tips
- Mount the valve on a suitable vessel (6″–12″ diameter) with a level base and proper plumbing.
- Connect inlet, outlet and drain lines according to the manufacturer’s guidelines—ensure the drain pipe is lower than the valve outlet.
- Use the handwheel to switch between modes: Service → Backwash → Fast Rinse → Service. Follow the cycle timing from the spec sheet.
- Regularly check for wear on O‑rings, handle mechanism and ensure the flow rate stays within specification.
- Monitor media condition: If you notice increased pressure drop or poor water output, perform backwash or replace filter media as required.
