Water from the mains is connected to the inlet port of the Slimline Water Filter Housing unit. The water is directed downwards through the filter cartridge within the unit. This process removes unwanted contaminants, determined by the type of cartridge fitted inside the housing. The water then flows upwards through the center of the cartridge and through the outlet port, and supplies filtered water.

SKU: HOU20-1 Categories: ,
Delivery and return
Delivery and return

Next day delivery in store

Buy before 6pm to receive your order next day.
FREE

Next day delivery

Orders before 6pm from Monday to Saturday (or before 1pm on Sunday) will be delivered Next working day (except Northern Ireland and Highlands). Orders placed after 6pm (after 1pm on Sunday) or for Northern Ireland and Highlands will be delivered in 2 working days.
29 USD

Drop Point

In 2-3 working days. Pick up your parcel in one of the many diferent collection points available and during a wide range of hours.
39 USD

Same day delivery in London:

Place your order before 13:00 to get it today!. If you order later on, you’ll receive it the next day and if you order on Sunday, you’ll receive it the next working day.
59 USD
Shipping Information
Shipping Information

SHIPPING

Complimentary ground shipping within 1 to 7 business days In-store collection available within 1 to 7 business days Next-day and Express delivery options also available Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items See the delivery FAQs for details on shipping methods, costs and delivery times
Composition and care
Composition and care

Characteristics of wood :

  • Hard, compact , fiberous and porous
  • Good wood gives a rich, warm and beautiful surface.

Wood is used for the construction of:

  • Floor, Furniture, Walls
  • Incidental furnishing (lampshades, picture frames)
  • Kitchen & restaurant ware

Description

White 20″ Standard Filter Housings

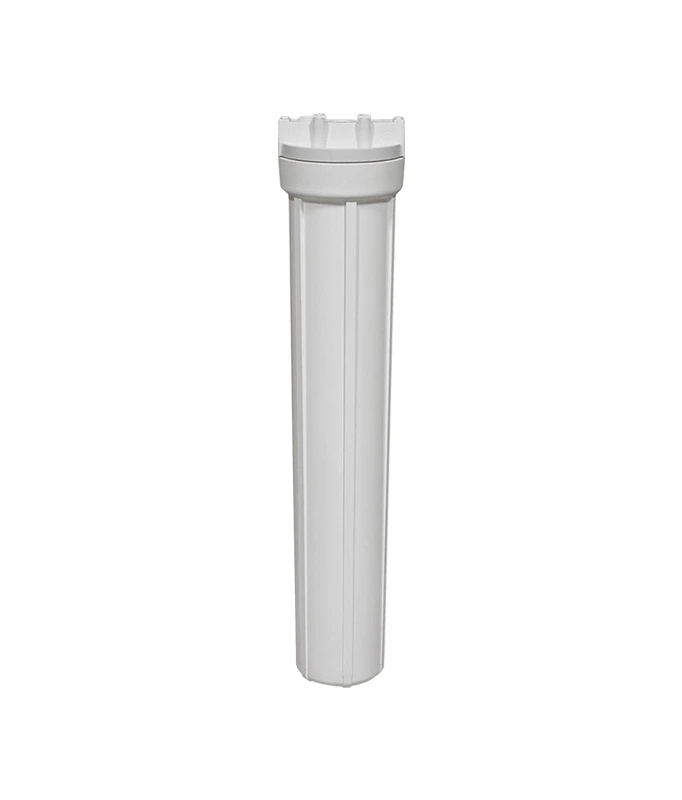

Slimline Filter Housing

How does it work?

Water from the mains is connected to the inlet port of the Slimline Water Filter Housing unit. The water is directed downwards through the filter cartridge within the unit. This process removes unwanted contaminants, determined by the type of cartridge fitted inside the housing. The water then flows upwards through the center of the cartridge and through the outlet port, and supplies filtered water.
Slim Line filter housings are available in either reinforced polypropylene. The reinforced polypropylene housing caps are available with 3/8″ NPT connections. Four bosses are molded into every cap for mounting purposes. Excellent for low-flow applications and when space and chemical compatibility are primary concerns.

  • Slim design reduces space required for installation without sacrificing capacity
  • FDA grade
  • Pressure Release button/bleed button on the inlet side of the cap
  • Leak-proof sealing with top-seated Buna-N O-ring

Slim Line Housings

Molded from rugged reinforced polypropylene, these housings are ideal for under-sink and countertop residential filtration, pre-and post-reverse osmosis filtration, recreational vehicle filtration, food service, humidifying systems, and light commercial and industrial filtration.

Materials of Construction

  • Housing: Styrene Acrylonitrile (Clear) and Polypropylene (Opaque)
  • Cap: Reinforced Polypropylene
  • Button Assembly: 300-series Stainless Steel, Polypropylene, and EPDM
  • O-Ring: Buna-N
  • Maximum Temperature: 125°F (51.7°C)
  • Maximum Pressure: 125 psi (8.62 bar)
  • Maximum Dimensions: 21-7/8″ x 4-3/8″
  • Initial Pressure (PSI) @ Flow Rate (GPM): 2 PSI @ 5 GPM

Product specifications:

  • Filter housing color: blue
  • Size: 20 Inch Slimline, i.e. 20 x 2.5 Inch
  • O-Ring type: Single O-ring seal
  • Inlet/Outlet port sizes: Female 1 Inch / 25mm thread
  • Maximum pressure: 6 bar / 90psi
  • Operating temperature range: 4 – 38°C
Description 20″ Slimline Housing
Size (L)610mm / (W)50mm In-Out Size 3/4″
Specification 20″Filter 20050 housings:
Description: Plastic, CS, and SS Cartridge Housings for all sizes and flow rates. String wound, pleated, pp and carbon cartridges.
Material: Polypropylene
Regulation:
1. The Highest endurable pressure: 10″~100 psi (7 kg/cm2), 20″~90 psi (6.3 kg/cm2)
2. The Highest endurable temp.: 120oF (50oC)
3.The Highest flow capacity: 50 G.P.M.
