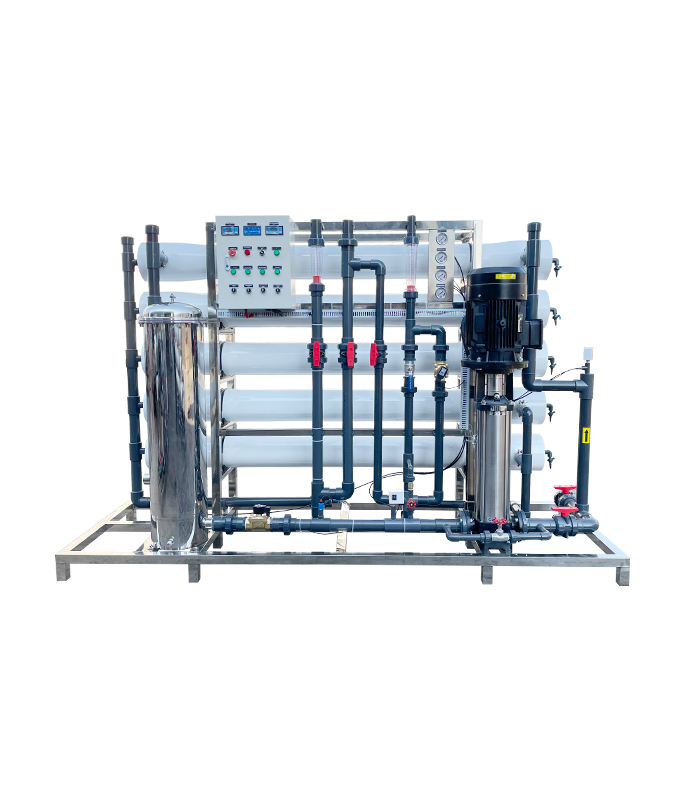

10000 LPH Industrial RO System – Overview

The 10000 LPH Industrial RO System is engineered for large-scale water purification where a steady, high volume of output is required. It can process up to 10 000 litres per hour, making it ideal for industrial, commercial, and municipal water supply applications. Water Purification Systems+2Plants Pro PTY Ltd+2 This system employs advanced reverse osmosis membranes and robust pre-treatment to remove dissolved solids, bacteria, organics, and other contaminants.

It includes strong stainless steel framing, high-capacity pumps, and multi-stage filters to ensure reliable performance, even under demanding conditions. Because it is designed for tough industrial environments, it supports continuous operation with good efficiency and durability.

Features & Benefits

• High-Volume Output: The 10000 LPH Industrial RO System meets large water demands — perfect for bottling plants, large-scale water refills, industrial process water.
• Advanced Purification: Uses multiple pre-treatment stages plus RO membranes for excellent impurity removal.
• Durable Build: Built with industrial-grade materials such as stainless steel and high-capacity pumps for long service life.
• Efficient Operation: Good recovery rates and efficient design reduce waste and operating cost.
• Customisable & Scalable: Can be tailored to your water quality and site needs, with options for automation, monitoring, and additional treatment.

SPECIFICATION

• High pressure pump: CDL16-120
  (Q=12m3, H=130m, 11KW, 3P)
• FRP membrane housing 8040 * 2 element * 5 300PSI
• RO membrane 8040 * 10pcs
• SS304 precision filter housing 40” * 10 element (Inlet/ outlet 2.5”)
• Brass Solenoid valve DN65 * 1pc, DN40 * 1pc
  (Inlet valve 2.5”; Flush valve 1.5”)
• SS304 Globe Valve DN15 * 1pc, DN25 * 1pc, DN40 * 1pc
• Coated eletric box * 1pc
• Pressure switch: -0.5 ~ 3 bar * 1pc, 5 ~ 30 bar * 1pc
• UPVC pipe PN16 * 1 lot
• Flow meter: Tube type (1.6-16T/ h * 1pc, 1 – 10T/ h * 1pc)
  Waste water flow meter: 1-10T/ h * 1pc
  Product water flow meter: 1.6 – 16T/ h * 1pc
• Pressure gauge: Panel type (2.5MPa * 2pc)
• Tube type: 1.0MPa * 2pcs, 2.5MPa * 1pc

TECHNICAL PARAMETER

• Model: RO10000LPH
• Capacity: 10T/ h – 10000LPH
• Power KW: 15 kW
• Inlet pressure: 3 Bars
• Running Pressure: 10-15 Bars
• Voltage: 380v/ 50hz，3P
• Membrane Recovery rate: 15%
• Purification rate 95% – 98%
• System recovery: 50%
• Max. TDS Input: 2000ppm
• Max. Input Temp.: 30˚
• CInlet pipe size: 2.5”
• Product water pipe size: 2”
• Waste water pipe size: 1.5”
• System power consumption 16 kW

Typical Applications

The 10000 LPH system is ideal for:

• Large-scale water bottling plants
• Beverage and food production facilities
• Municipal and commercial water treatment stations
• Industrial process feed water
• Pre-treatment for boilers or large equipment

Installation & Maintenance Tips

• Begin with a full water analysis to determine required pre-treatment setup before using the 10000 LPH Industrial RO System.
• Install the system on a level base, with adequate space for filters, membranes and servicing.
• Monitor pressure, flow, recovery and reject streams regularly.
• Replace or clean pre-filters and membranes as required to maintain performance.
• Ensure stable power supply and proper connections for safe, continuous operation.
